In high-stress industrial applications, the structural integrity of composite materials, coatings, and laminates relies entirely on the hidden reinforcement matrix. Material failure often traces back to an incorrect fabric specification. Engineering and procurement teams must balance tensile strength, dimensional stability, profile thickness, and material costs. Selecting the wrong reinforcement fabric leads to delamination, environmental degradation, or unnecessary production expenses.
Evaluating a polyester woven scrim against laid architectures and alternative polymer bases requires a strict features-to-outcomes framework. Nylon, fiberglass, and aramid all present unique structural behaviors under load. This guide breaks down the mechanical properties, structural trade-offs, and application-specific criteria necessary for specifying the correct reinforcement layer.
Structural Integrity: Woven scrim provides superior mechanical interlocking (warp and weft) compared to laid scrims, offering higher tear resistance and dimensional stability under dynamic loads.
Material Efficiency: Polyester delivers an optimal balance of moisture resistance, UV stability, and cost-effectiveness, outperforming nylon in wet environments and fiberglass in high-flexibility applications.
Profile Trade-offs: While woven architectures offer maximum strength, they are typically 20-40% thicker than laid alternatives, requiring careful evaluation of the final product's thickness tolerances.
Coating Compatibility: As a scrim backing, woven polyester excels in supporting liquid coatings and laminates, preventing strike-through while maintaining high peel strength and controlling elongation.

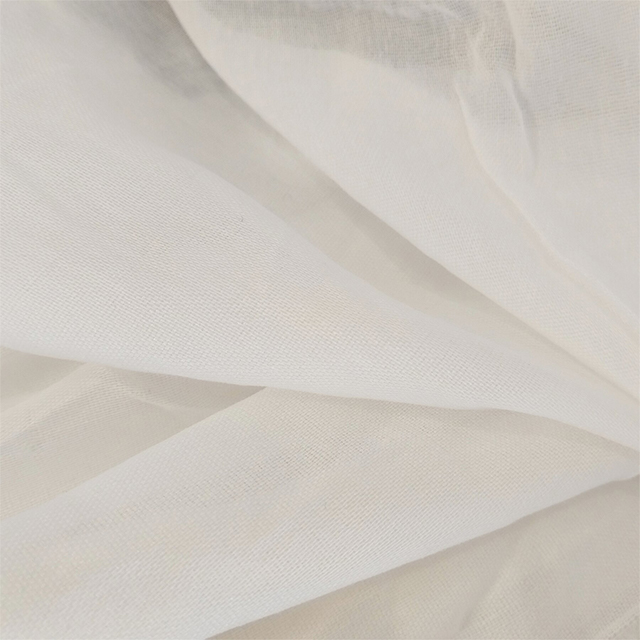

Woven reinforcement fabrics utilize a tight warp-weft interlocking pattern. Yarns run longitudinally in the machine direction (warp) and transversely in the cross-machine direction (weft). During production on rapier or projectile looms, these yarns cross over and under one another. This mechanical weaving process creates a highly stable grid. It prevents yarn separation when subjected to multi-directional stress. The physical interlocking makes the individual yarns exceptionally difficult to pull apart, even when the surrounding polymer matrix sustains damage.
Non-woven and laid alternatives rely heavily on chemical binders. They use adhesives to hold the intersecting yarns together at flat junctions. A polyester scrim depends on physical geometry for its primary strength. This mechanical bond distributes localized stress across the entire fabric matrix. It prevents catastrophic failure if a single yarn breaks. Engineers specify woven architectures when dynamic loading, wind shear, and high mechanical forces are expected in the final application.
The weaving process also introduces a slight crimp into the yarns. When a sudden load hits the fabric, this crimp straightens out before the yarn takes the full tensile force. This built-in shock absorption prevents the reinforcement layer from snapping under sudden impacts, a common failure mode in rigid, non-crimped laid fabrics.
Polyester, specifically polyethylene terephthalate (PET), exhibits inherent properties ideal for reinforcement. PET yarns offer extremely low moisture absorption, typically retaining less than 0.4% moisture by weight. They maintain high dimensional stability across varying humidity levels. The polymer naturally resists biological degradation, preventing rot and mildew in damp environments. These characteristics make polyester a dependable baseline for outdoor, marine, and subterranean applications.
The choice between continuous filament yarns and staple fibers dictates mechanical performance. Continuous polyester yarns provide uninterrupted load paths. They maximize tensile strength and minimize surface fraying. Staple fibers, spun from shorter lengths, introduce weak points along the yarn axis. Specifying continuous filament ensures the fabric can handle sustained tension without gradual fiber separation. High-tenacity continuous PET yarns routinely deliver 8 to 9 grams per denier of breaking strength.
Polyester features a controlled elongation-to-break ratio. It absorbs mechanical shock and sudden impacts without suffering permanent deformation. The material stretches slightly under peak loads and returns to its original dimensions. Furthermore, polyester acts as a highly stable substrate. It accepts various chemical coatings seamlessly. PVC plastisol, polyurethane, and acrylics bond effectively to the PET surface, creating robust industrial fabrics ready for extreme environments.
Load-bearing capabilities differ significantly between woven and laid constructions. Woven structures distribute applied stress across multiple interlocking yarns. This geometry provides superior tear propagation resistance. If a puncture occurs, the surrounding warp and weft yarns physically slide together and bundle at the edge of the tear. This "rip-stop" effect means the tearing force must break five or six bundled yarns simultaneously to continue propagating.
Laid scrims exhibit different failure modes under high shear forces. In a laid construction, continuous yarns sit on top of one another. They are merely glued at their intersections to form an open-mesh grid. When subjected to heavy diagonal or shear stress, the adhesive binder can fail. The yarns pop off the adhesive and slide past each other, leading to rapid structural degradation. Laid fabrics perform well under static, uniform tension but struggle against dynamic, multi-directional tearing forces.
Field testing using the trapezoidal tear method (ASTM D4533) consistently demonstrates that woven fabrics outperform laid fabrics of the exact same yarn denier and weight. The mechanical lock simply handles abuse better than a chemical adhesive bond.
Dimensional realities dictate fabric selection in precision manufacturing. Laid scrims are generally 20 to 40 percent thinner than woven products. They are also noticeably lighter, even when made from identical yarn denier and construction parameters. The lack of an over-and-under weave eliminates the physical bulk at yarn intersections. This creates an exceptionally flat profile.
Engineers must apply a strict decision framework regarding profile thickness. A low-profile laid scrim is necessary for thin-film laminates. It works perfectly for lightweight packaging, sail tape, and delicate vapor barriers where caliper thickness must remain minimal. Conversely, the physical bulk of a woven architecture is required for heavy-duty structural support. Roofing membranes, tension structures, and heavy conveyor belts demand the thicker, mechanically interlocked profile to withstand severe operational abuse.
The knuckles created by the woven intersections also dictate coating weights. A woven fabric requires a thicker layer of liquid polymer to fully encapsulate the knuckles and create a smooth surface finish. If weight reduction is the primary goal of the engineering project, laid scrims offer a distinct advantage.
Both woven and laid architectures utilize an open-weave nature to facilitate encapsulation. The intentional spacing between yarns allows liquid polymers to flow through the fabric. This creates a solid mechanical lock once the coating cures. The grid size, measured in ends and picks per inch, dictates the exact volume of coating the fabric can support.
A tighter grid (e.g., 18x18 ends per inch) holds more coating on the surface, increasing puncture resistance but limiting strike-through. A wider grid (e.g., 9x9 ends per inch) allows deeper penetration. The liquid coating flows through the holes and cures, forming a solid polymer rivet that locks the top and bottom coating layers together. This maximizes the peel strength of the composite.
When used as a scrim backing, the woven matrix acts as a structural skeleton. It physically supports the liquid coating during the extrusion or dip process. The backing controls the elongation of the polymer and dictates the final tear strength of the finished composite structure.
Moisture handling is the primary differentiator between polyester and nylon. Nylon is hydrophilic. It absorbs water from its surrounding environment, sometimes holding up to 4% of its weight in moisture. This absorption causes nylon yarns to swell, leading to a loss of dimensional stability. If the outer coating of a nylon-reinforced composite scratches, water wicks into the fabric, causing massive delamination. Polyester is hydrophobic. It remains dimensionally stable in high-humidity environments and fully submerged conditions.
Elongation characteristics also separate the two polymers. Nylon stretches significantly more under a given load. While this high elasticity benefits dynamic impact applications like climbing ropes or airbags, it is detrimental to industrial composites. Applications requiring rigid dimensional stability, such as roofing membranes or printed banners, fail if the internal reinforcement stretches. A stretching truck tarp will flap in the wind, leading to rapid fatigue failure. Polyester provides the necessary rigidity to keep the final product flat and dimensionally accurate.
Fiberglass offers exceptional tensile strength and superior heat resistance. It withstands extreme temperatures that would melt standard thermoplastic yarns. It also features a very high modulus, meaning it does not stretch under load. However, fiberglass suffers from severe brittleness. The glass filaments fracture under repeated flexing, sharp folding, or constant vibration. Once the filaments break, the reinforcement matrix loses its load-bearing capacity entirely.
A polyester scrim fabric serves as the superior choice for dynamic, high-flex applications. It bends, folds, and flexes repeatedly without fracturing the internal filaments. Flexible ducting, sailcloth, and temporary architectural structures require this resilience. Polyester absorbs the kinetic energy of wind and movement, whereas fiberglass would quickly shatter under the same environmental stress.
Aramid fibers, commonly known by brand names like Kevlar or Twaron, provide extreme tensile strength. They offer exceptional cut resistance and high thermal stability. However, this performance comes at a massive premium. Aramid yarns cost significantly more than standard PET yarns. They also present challenges in cutting and processing due to their toughness, requiring specialized shears on the fabrication floor.
Procurement teams must identify over-engineering scenarios. Using aramid in a standard PVC banner or a basic moisture barrier wastes capital. Furthermore, aramid degrades rapidly when exposed to UV light. If the outer coating is transparent or sustains damage, sunlight will destroy the aramid yarns. A woven scrim made of polyester provides more than adequate strength for most commercial applications. It delivers superior moisture resistance and high dimensional stability for a fraction of the procurement cost. Aramid should be strictly reserved for ballistic protection, extreme heat environments, or aerospace composites.
Material | Tensile Strength | Flex Fatigue Resistance | Moisture Resistance | UV Stability |
|---|---|---|---|---|
Polyester (PET) | High | Excellent | Excellent | High |
Nylon 6,6 | High | Excellent | Poor (Swells) | Moderate |
Fiberglass | Very High | Poor (Snaps) | Excellent | Excellent |
Aramid | Extreme | Good | Moderate | Poor (Degrades) |
Matching the fabric architecture to the end-use environment prevents premature failure. High-stress applications demand the mechanical interlocking of woven polyester. Architectural fabric structures, such as roofing membranes and tension tents, rely on this matrix to survive wind shear and snow loads. Automotive composites and heavy-duty liquid filtration systems also require the dimensional stability provided by a woven grid.
Conversely, lightweight open-weave materials suit secondary reinforcement tasks. Tape backing, lightweight packaging, and thin insulation foils do not require massive tear strength. They require a low-profile stabilizing layer. In these specific cases, a laid scrim provides the necessary flat profile without adding unnecessary weight to the final consumer product.
Evaluating the operational environment is a mandatory step in fabric specification. UV exposure degrades unprotected polymers rapidly. Temperature fluctuations cause materials to expand and contract, stressing the adhesive bonds. Chemical contact from alkali, acidic, or solvent environments can dissolve certain yarns entirely.
Engineers must match the polymer type and protective finish to the expected lifecycle. Polyester naturally resists many mild acids and biological threats. It handles pH levels between 4 and 8 exceptionally well. However, if the fabric will face strong alkalis (pH 12+), such as lining a concrete tank, hydrolysis will destroy the PET. In those cases, specialized coatings or alternative yarns become necessary. The protective finish applied during the coating process ultimately shields the internal scrim from environmental degradation. The scrim must be chemically compatible with this outer protective layer.
The reinforcement layer must integrate smoothly with existing manufacturing lines. Extrusion coating, dip coating, and adhesive lamination all subject the raw fabric to different stresses. High-heat processing environments pose a specific threat to thermoplastic yarns. Unstabilized polyester shrinks up to 10% when exposed to elevated temperatures, causing the final composite to warp, curl, or pucker on the production line.
To mitigate this, manufacturers use heat-set polyester. The fabric passes through a stenter frame at temperatures exceeding 200°C before coating. This pre-shrinks the yarns and locks the dimensional memory into the fabric. Heat-setting ensures the scrim remains completely flat and dimensionally stable when it hits the hot extrusion die or the curing oven on the production floor.
Coating Process | Heat Exposure | Tension Level | Fabric Requirement |
|---|---|---|---|
Extrusion Coating | Very High (200°C+) | High | Heat-set PET, High dimensional stability |
Knife-Over-Roll | Medium (160°C) | Medium | Standard or Heat-set PET, Smooth profile |
Dip Coating | Medium (150°C) | Low to Medium | Open mesh, Good strike-through |
Cold Lamination | Low (Ambient) | High | High tensile strength, Flat profile |
Material specification directly impacts long-term production economics. Sourcing standard polyester woven configurations offers immense supply chain stability. The global production volume of PET yarns ensures consistent availability and predictable raw material costs. Standard weave patterns (like a 1000D 9x9 construction) require minimal machine setup time, keeping lead times short.
Custom-engineered aramid grids or hybrid weave structures introduce supply chain friction. They require specialized yarn sourcing, longer production runs, and higher minimum order quantities. Procurement teams must weigh the technical necessity of a custom fabric against the cost-effectiveness of an off-the-shelf polyester configuration. In most industrial scenarios, standard polyester delivers the required mechanical performance while maintaining strict budget compliance.
Inadequate bonding between the scrim and the polymer matrix leads directly to composite failure. Polyester has a smooth surface and relatively low surface energy. If the liquid coating (especially PVC plastisol) does not adhere to the polyester yarns, the layers will separate under tension. This delamination destroys the structural integrity of the finished product. Moisture can then penetrate the gap, accelerating the degradation process.
Mitigating this risk requires proper surface preparation. Specify the correct adhesion-promoting finishes on the polyester yarns prior to integration. Manufacturers apply specific chemical binders, RFL (Resorcinol Formaldehyde Latex) dips, or PVC-compatible primers to the raw yarn. These primers act as a chemical bridge, ensuring the coating achieves a permanent mechanical and chemical bond with the smooth polyester surface.
Verify the chemical compatibility between the fabric primer and your specific coating polymer.
Conduct small-batch peel strength testing (ASTM D751) before running full production volumes.
Adjust oven curing temperatures to ensure the primer activates correctly during the coating process.
Monitor the moisture content of the fabric rolls in storage, as excess humidity can interfere with primer adhesion.
Open-weave woven fabrics can distort during tensioning on the manufacturing line. As the fabric pulls through the coating machinery, uneven tension can cause the warp and weft yarns to shift out of alignment. This distortion, known as bow and skew, turns square grids into diamonds. It creates weak spots in the final composite and leads to visual defects in translucent applications. Fraying at the slit edges also introduces contamination into the coating bath.
To prevent yarn shifting, utilize locked-weave constructions. A leno weave twists two warp yarns (doup ends) around each weft yarn, physically locking the intersection in place. Alternatively, apply a pre-stabilized coating (a light binder wash) to the fabric before the main coating process. This light adhesive locks the warp and weft intersections, ensuring the grid remains perfectly square under heavy machine tension.
Polyester woven scrim stands as the optimal baseline for applications demanding high tear strength, moisture resistance, and controlled elongation. Its mechanical interlocking provides superior dynamic load handling compared to laid alternatives. It ensures reliable coating adhesion and dimensional stability across diverse industrial environments. Laid scrims and fiberglass materials remain highly effective, but they should be strictly reserved for applications requiring an ultra-low profile or extreme heat resistance.
Decision-makers must filter their specifications through three primary constraints. First, evaluate required tensile strength versus allowable profile thickness. Second, assess the environmental demands, specifically moisture exposure and repeated flexing. Finally, align the material choice with budget constraints, avoiding over-engineered polymers when standard heat-set polyester exceeds the mechanical requirements.
To move forward with specifying the correct reinforcement fabric, take the following actions:
Request technical data sheets (TDS) from manufacturers to verify exact yarn denier and tensile strength metrics.
Order physical material samples to conduct in-house adhesion and peel-strength testing with your specific coating polymers.
Consult directly with industrial fabric engineers to define the necessary continuous filament requirements and optimal weave density for your production line.
Specify heat-set processing if your manufacturing environment involves high-temperature extrusion or curing ovens.
A: A woven scrim features yarns mechanically interlocked in an over-and-under pattern, providing high tear resistance and structural bulk. A laid scrim consists of continuous yarns laid across each other and bonded with chemical adhesives. Laid scrims are typically 20-40% thinner but lack the dynamic tear strength of woven architectures.
A: Polyester offers superior flexibility and dynamic resilience. Fiberglass possesses higher tensile strength and heat resistance, but it is highly brittle. It will fracture and fail under repeated bending, folding, or vibration. Polyester absorbs mechanical shock and flexes continuously without breaking, making it ideal for dynamic applications.
A: A scrim backing acts as the structural skeleton for liquid coatings. It provides dimensional stability, prevents the polymer from elongating under load, and drastically increases the tear and puncture strength of the final composite. It also supports the liquid coating during the manufacturing process, preventing strike-through.
A: Yes. Polyester is inherently hydrophobic, meaning it absorbs virtually no moisture. It maintains its dimensional stability when wet and naturally resists rot, mildew, and biological degradation. This makes it highly effective for outdoor industrial fabrics, architectural roofing structures, and marine environments.
A: Open-weave refers to a fabric construction with intentional, measurable spacing between the warp and weft yarns. This grid-like spacing allows liquid coatings or adhesives to flow through the fabric. It encapsulates the yarns completely, creating a maximum mechanical bond and preventing delamination in the finished composite.
