At the core of high-performance composite materials lies a hidden structural backbone. Without proper reinforcement layers, flexible composites and heavy-duty textiles face catastrophic material failure under stress. Engineers constantly battle the challenge of balancing tensile strength, weight reduction, and material cost when designing modern laminates. Integrating a high-quality polyester scrim emerges as the optimal reinforcement solution for these demanding applications. The choice between woven, knitted, or laid manufacturing methods directly dictates the success or failure of the final product. We will look at how to evaluate different mesh types, match them to specific industrial uses, and select the right configurations to prevent delamination and ensure long-term durability on the job site.
Material Superiority: Polyester scrim offers an exceptional strength-to-weight ratio, high dimensional stability, and superior moisture resistance compared to natural fibers or standard nylon.
Application-Specific Constructions: The performance of the scrim depends heavily on its construction—woven scrim provides rigidity, knitted offers flexibility and tear resistance, and laid scrim delivers cost-effective, flat-profile reinforcement.
Coating Compatibility: Successful integration requires precise matching of the scrim backing with the appropriate chemical binders or coatings (e.g., vinyl-coated polyester) to prevent delamination.
Supplier Due Diligence: Selecting a reliable polyester scrim supplier requires evaluating their capacity for custom yarn deniers, binder chemistry adjustments, and rigorous lot-to-lot quality control.

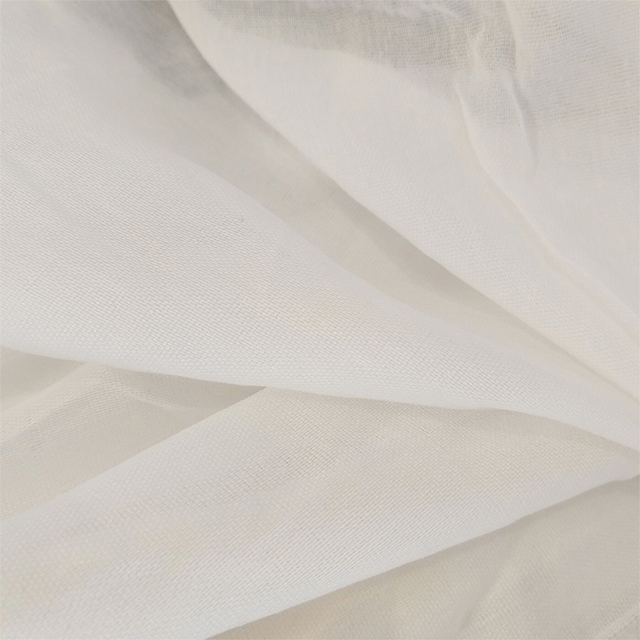

You can define polyester scrim fabric as a lightweight, open-weave or open-mesh material. Manufacturers engineer it specifically to reinforce secondary materials. These secondary materials often include films, non-wovens, papers, or liquid polymers. The open mesh allows coatings and adhesives to strike through the fabric. This strike-through creates a mechanical lock between the top and bottom layers of a composite. The mesh acts as an internal skeleton. It distributes localized stress across a broader surface area. This distribution prevents punctures from turning into massive tears. Engineers specify exact grid patterns to control how the final composite behaves under load. For example, a 9x9 threads-per-inch (TPI) grid provides a balanced lock for heavy PVC coatings, while a tighter 18x18 grid supports thinner lamination films.
High-tenacity polyester (PET) yarns offer distinct chemical and physical advantages over alternatives like fiberglass or nylon. Polyester provides exceptional resistance to UV degradation. It maintains its structural integrity even after prolonged exposure to sunlight. Nylon absorbs moisture from the environment. This absorption causes nylon to swell and lose up to 15% of its tensile strength in damp conditions. Polyester features an extremely low moisture absorption rate. It remains dimensionally stable in wet environments. Fiberglass offers high heat resistance but suffers from brittleness. It can snap under a tight bend radius. Polyester delivers consistent performance under thermal stress while maintaining dynamic flexibility. It absorbs impact energy without fracturing the individual filaments. This makes it ideal for applications requiring repeated flexing and folding.
Engineers now utilize glass and polyester hybrid meshes to solve complex material challenges on the manufacturing floor. These hybrids combine the rigid heat resistance of fiberglass yarns with the dynamic flexibility of polyester. Manufacturers often run fiberglass in the machine direction (warp) for longitudinal stability. This prevents the material from stretching as it is pulled through high-tension coating lines. They then use polyester in the cross direction (weft) for impact resistance. This combination prevents the brittle failure typical of pure fiberglass meshes. Hybrid materials excel in environments experiencing rapid temperature fluctuations and physical impacts. They offer a balanced reinforcement profile for advanced composite manufacturing, particularly in commercial roofing where both dimensional stability and foot-traffic resistance are required.
Applying a scrim backing transforms fragile substrates into highly durable materials. Thin polymer films tear easily under tension. Foil facings puncture upon impact. Bonding these weak substrates to a polyester mesh creates a composite capable of withstanding severe industrial wear and tear. The backing stabilizes the primary material during the manufacturing process. It prevents stretching or shrinking as the material moves through high-speed nip rollers and curing ovens. This hidden reinforcement layer extends the operational lifespan of the final product significantly. When applied to acoustic foam or thermal insulation, the backing provides the necessary tensile strength for installers to pull the material tight across framing without ripping it.
The traditional interlaced over-and-under yarn structure defines woven scrim. Industrial looms interlock the warp and weft yarns at right angles. This mechanical interlacing creates rigid dimensional stability. The yarns cannot easily slide past one another. This structure delivers exceptionally high tensile strength in both directions. Engineers specify woven constructions when the final product must resist stretching under heavy static loads. The crimp created by the over-and-under weave does introduce slight initial stretch. Once pulled taut, the woven matrix locks into a rigid, unyielding reinforcement layer.
Heavy-duty conveyor belting requiring zero stretch under load.
High-tension architectural structures and tensile roofs.
Industrial filtration media operating under high fluid pressure.
Geotextiles used for soil stabilization and erosion control.
Knitted constructions utilize a continuous fiber looping process known as warp knitting. This method avoids the crimp found in woven materials. The primary load-bearing yarns lie perfectly straight. A secondary knitting yarn loops around the intersections to hold the grid together. Because the primary yarns remain straight, they utilize 100% of their tensile strength immediately upon loading. This structure provides dynamic flexibility and superior tear resistance. If a puncture occurs, the knitted loops shift and bunch together. This bunching creates a localized barrier that stops the tear from propagating. Primary use cases include military textiles, flexible ventilation ducting, and automotive interior components. Knitted meshes handle dynamic, shifting loads exceptionally well.
The laid process chemically bonds continuous, high-tenacity yarns in an open-mesh configuration. It involves absolutely no interlacing or knitting. The warp yarns lie flat. The weft yarns lay directly on top of them. A chemical binder, often a PVA or acrylic formulation, encapsulates the intersections, locking the grid in place. This method evaluates as highly cost-effective due to rapid production speeds on rotary screen lines. It provides an ultra-flat profile to laminates. The absence of yarn crimp or knitting knots prevents the mesh pattern from telegraphing through thin surface films. Primary use cases include roofing membranes, foil insulation facings, and reinforced packaging tapes. Laid constructions offer excellent dimensional stability for flat, static applications.
Manufacturers utilize polyester meshes to produce lightweight, durable interior and exterior parts. In automotive applications, engineers embed the mesh into molded headliners, trunk liners, and door panels. The reinforcement provides the necessary rigidity to hold complex 3D shapes without adding excessive weight. This directly contributes to overall vehicle weight reduction. Lighter vehicles achieve better fuel efficiency and extended battery range. In aerospace, specialized low-shrink polyester meshes reinforce cabin insulation blankets. They prevent the insulation from sagging or tearing under the constant vibration of flight. The material maintains its structural integrity across extreme altitude and temperature variations, ensuring acoustic and thermal barriers remain intact.
Commercial roofing systems rely heavily on laid reinforcement. Manufacturers embed pure polyester or glass/polyester blends directly into TPO, PVC, and EPDM roofing membranes. The mesh stabilizes the membrane against severe thermal expansion and contraction. Without this reinforcement, large roofing sheets would shrink, pulling away from the building edges and causing catastrophic leaks. In insulation applications, the mesh reinforces radiant barrier foils and fiberglass batt facings. It prevents the facing material from tearing during installation. Construction crews can pull the insulation tight across roof trusses. The reinforcement ensures the vapor barrier remains completely intact, passing strict wind uplift testing protocols.
Military fabrics demand extreme performance under harsh conditions. Defense contractors analyze the use of knitted meshes to provide flexible, lightweight tear mitigation. They laminate these materials inside tactical tarpaulins, temporary shelter fabrics, and protective equipment. The knitted structure allows the fabric to flex naturally in cold environments without stiffening or cracking. If shrapnel or debris punctures the fabric, the knitted yarns shift to arrest the tear immediately. This prevents a small hole from compromising an entire shelter. The low weight of the polyester reinforcement allows soldiers to carry more essential gear without increasing their total load.
The manufacturing of vinyl-coated polyester relies entirely on a strong base mesh. Manufacturers bond a liquid PVC or vinyl surface to a reinforced polyester core. They use either a knife-over-roll extrusion coating or a dip-coating process. The liquid polymer flows through the open mesh, encapsulating the yarns completely. This creates waterproof, abrasion-resistant industrial fabrics. These heavy-duty textiles serve as trucking tarps, event tents, and oil containment booms. The exterior vinyl provides weatherproofing and chemical resistance. The internal polyester matrix provides the mechanical strength required to withstand high winds, heavy cargo loads, and constant abrasion on the highway.
Engineers must calculate the required load-bearing limits for specific industrial applications. Tensile strength measures the maximum stress the mesh can withstand before breaking. You must evaluate this in both the machine direction (MD) and cross direction (CD). Elongation at break measures the acceptable stretch before failure. Rigid applications require low elongation to prevent deformation. Dynamic applications require higher elongation to absorb shock loads. Testing protocols like ASTM D5034 (Grab Test) provide standardized metrics. You must match the tensile properties of the reinforcement to the expected operational stresses of the final composite.
The critical relationship between the chemical finish and the final coating material determines composite success. Manufacturers apply a sizing or chemical binder to the yarns during production. This binder holds the mesh together. It also serves as a primer for the final coating. You must ensure absolute compatibility between the supplier's binder chemistry and your specific coating polymer. Incompatible chemistries lead to poor adhesion. This results in delamination, where the layers peel apart under stress. Conduct rigorous peel strength testing to verify maximum adhesion before committing to full-scale production runs. Plastisol formulations, for instance, require specific acrylic or PVC-based binders to achieve a permanent bond.
Specifying the correct threads-per-inch (TPI) dictates the open area of the mesh. A tighter grid provides more reinforcement points but reduces the strike-through area for coatings. A more open grid increases strike-through but lowers overall tensile strength. You must balance this geometry using high-tenacity yarns. Yarn denier measures the thickness and weight of the individual threads. Utilizing a 1000 denier yarn in an open mesh configuration can achieve the required strength without adding excessive weight, compared to using a 500 denier yarn in a tight weave. This balance maintains the flexibility of the final composite while meeting strict performance specifications.
Industrial applications expose materials to harsh environments. You need metrics for evaluating resistance to industrial solvents, prolonged UV exposure, and extreme temperature fluctuations. Polyester naturally resists weak acids and alkalis. However, specific chemical binders may degrade when exposed to harsh solvents. Evaluate the UV stability of both the yarn and the binder if the application involves outdoor exposure. Thermal resilience testing ensures the mesh will not melt or distort during high-heat manufacturing processes. Request technical data sheets detailing the specific environmental tolerances, including hydrolysis resistance, of the chosen reinforcement material.
Scrim Type | Manufacturing Process | Primary Characteristics | Ideal Industrial Applications |
|---|---|---|---|
Woven | Interlaced warp and weft yarns | High rigidity, low stretch, high tensile strength | Conveyor belts, architectural fabrics, filtration |
Knitted | Continuous warp knitting (no crimp) | High flexibility, superior tear resistance | Military gear, flexible ducting, automotive |
Laid | Chemically bonded flat yarns | Ultra-flat profile, highly cost-effective | Roofing membranes, insulation foil, tapes |
Procurement teams must analyze the cost implications of utilizing off-the-shelf mesh configurations versus commissioning custom-engineered solutions. Standard meshes offer immediate availability and lower minimum order quantities (MOQs). They work well for general-purpose lamination. Highly specialized applications often require custom engineering. You might need a specific yarn denier in the warp and a different denier in the weft to handle directional stress. Custom engineering requires higher initial setup costs and larger volume commitments. However, a custom mesh prevents over-engineering. You only pay for the exact tensile strength and weight required for your specific product. This precise matching often reduces long-term material expenses.
The dimensional stability of high-quality polyester mesh directly impacts manufacturing yield. Inferior meshes stretch or distort unevenly as they run through coating machines. This distortion causes wrinkles, edge curling, and uneven coating weights, leading to rejected material and wasted polymer. High-quality reinforcement maintains a perfectly flat, uniform profile under web tension. This stability reduces manufacturing waste significantly. It also minimizes machine downtime caused by web breaks or realignment issues. Investing in a dimensionally stable mesh increases overall processing efficiencies. The initial material cost is offset by higher production throughput and lower scrap rates on the factory floor.
Common Defect | Root Cause | Manufacturing Solution |
|---|---|---|
Delamination | Incompatible binder chemistry or plasticizer migration. | Match binder formulation to the specific coating polymer. |
Web Wrinkling | Poor dimensional stability under machine tension. | Switch to a heat-set mesh or adjust web tension controls. |
Telegraphing | Yarn crimp or knots showing through thin films. | Utilize a laid construction for an ultra-flat profile. |
Thermal Shrinkage | Unprocessed yarns exposed to high curing oven temperatures. | Specify pre-shrunk, tenter-frame processed materials. |
Poor adhesion between the reinforcement layer and the polymer matrix represents the most common failure point in composite manufacturing. Delamination destroys the structural integrity of the final product. You mitigate this risk by mandating strict compatibility testing. Require your supplier to provide binder chemistry details. Test the adhesion of their specific binder against your PVC, polyurethane, or silicone coatings. Perform accelerated aging tests to ensure the bond remains stable over time. Never assume a standard binder will adhere perfectly to a proprietary coating formulation. Conduct lab drawdowns before moving to full production.
High-heat coating processes introduce the risk of thermal distortion. Unprocessed polyester yarns shrink when exposed to elevated temperatures. If the mesh shrinks during lamination, it warps the entire composite. You mitigate this risk by specifying heat-set materials. The manufacturer runs the mesh through a high-temperature oven (tenter frame) during production. This process pre-shrinks the yarns and locks the grid geometry in place. Heat-set materials remain dimensionally stable when exposed to the heat of your coating lines. Always verify the thermal shrinkage percentage on the technical data sheet.
Relying on single-source, overseas suppliers for custom weaves exposes your production to severe supply chain volatility. Shipping delays, port strikes, or geopolitical issues can halt your manufacturing lines entirely. You mitigate this risk by implementing a dual-sourcing strategy. Qualify at least two independent suppliers for your critical reinforcement materials. Verify their domestic warehousing capabilities. A reliable partner should hold buffer stock locally to absorb unexpected demand spikes or transit delays. Consistent supply is just as critical as technical performance.
Assessing a supplier's testing protocols ensures you receive consistent material. Look for a polyester scrim supplier that operates under strict ISO quality management standards. Evaluate their lot-to-lot consistency tracking. They must perform continuous tensile testing, elongation checks, and binder content analysis during production. Ask about their defect tracking systems. Automated optical camera inspection systems can detect broken yarns or missing binder applications before the roll ships. Rigorous quality control prevents defective reinforcement from ruining your expensive polymer coatings.
Evaluate the supplier's ability to solve specific manufacturing challenges. A true partner offers robust engineering support. They should possess the capability to adjust binder chemistry to match your unique adhesives, including adding flame retardant (FR) properties if required. They must be able to modify yarn denier and mesh dimensions to hit your exact weight targets. Discuss your specific processing pain points with their technical team. Their ability to formulate custom solutions demonstrates their expertise. Avoid suppliers who only push standard catalog items when your application requires specialized performance.
Never commit to full-scale production without extensive R&D testing. The importance of a supplier's willingness to provide pilot-scale rolls cannot be overstated. You need sample material to run trial laminations on your actual production equipment. This allows you to verify adhesion, track web tension behavior, and test the final composite's physical properties. A reliable supplier will readily supply sample yardage for prototyping. They will work iteratively with your engineering team to refine the mesh specifications based on your trial results.
Define your exact tensile strength, elongation, and environmental resilience requirements before contacting suppliers.
Request comprehensive Technical Data Sheets (TDS) to verify thermal shrinkage and binder chemistry.
Order sample rolls to conduct rigorous peel strength and adhesion testing with your specific coating polymers.
Implement a dual-sourcing strategy and verify domestic warehousing to protect your supply chain.
A: Polyester offers superior flexibility, impact resistance, and a much lower risk of fiber breakage under dynamic stress. It handles repeated flexing without failing. Fiberglass provides extreme rigidity and high heat resistance but is brittle and prone to fracturing upon impact. Hybrid glass/polyester meshes exist to combine the thermal stability of glass with the dynamic durability of polyester.
A: Manufacturers produce it using an extrusion or dip-coating process. They feed a reinforced polyester base layer through a coating line. Liquid PVC is applied directly onto the mesh. The polymer flows through the open grid, encapsulating the yarns. Heat cures the PVC, creating a permanent mechanical and chemical bond.
A: It serves as a hidden reinforcement layer. Manufacturers laminate it to weaker substrates like paper, foam, non-wovens, or thin polymer films. The backing adds massive tensile strength, tear resistance, and dimensional stability, preventing the fragile primary material from ripping under industrial stress.
A: The open-mesh fabric itself is not waterproof. Water passes easily through the grid structure. However, it serves as the essential structural core for waterproof composites. When encapsulated in liquid coatings like PVC, polyurethane, or silicone, the final laminated product becomes completely waterproof and highly durable.
A: Several technical factors drive the cost. These include the use of specialized high-tenacity yarns, the specific yarn denier, and the threads per inch (TPI). The application of custom chemical binders for adhesion and the slower, more complex mechanical weaving process also increase the final material cost compared to laid alternatives.
A: Yes, they perform exceptionally well outdoors. However, the raw polyester yarns must be treated for UV resistance during extrusion, or the mesh must be completely encapsulated in a UV-stable coating (like opaque PVC). This prevents the sun's ultraviolet rays from degrading the polymer chains over time.
